Lifesaving throwing launcher
Amphibious, used for long-distance throwing of lifeline and lifebuoy. Pneumatic injection of gas cylinder, which consists of launching mechanism, launching cylinder assembly, inflation device, protection device, accessories of fast automatic inflation and life-saving device, etc.
The projectile range is 60-100 meters.
Land use: 150m long rope, 1 3mm diameter land rope, 100m horizontal launch distance.
Water use : 92m long rope and 6mm diameter, horizontal launch distance of 60m (with a lifebuoy), and the self-inflating lifebuoy automatically inflates and floats when it falls into the water.

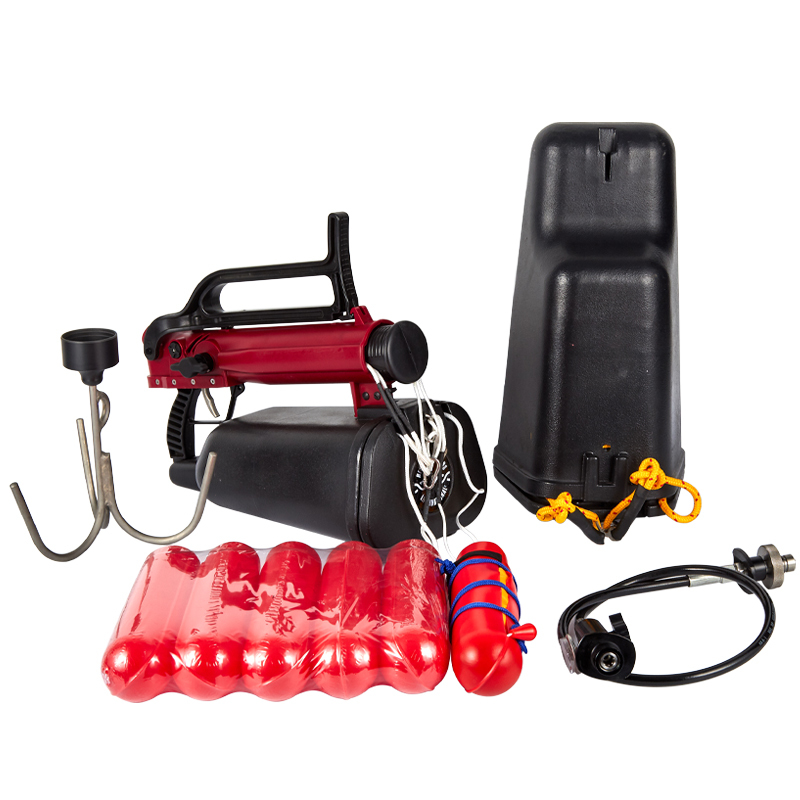

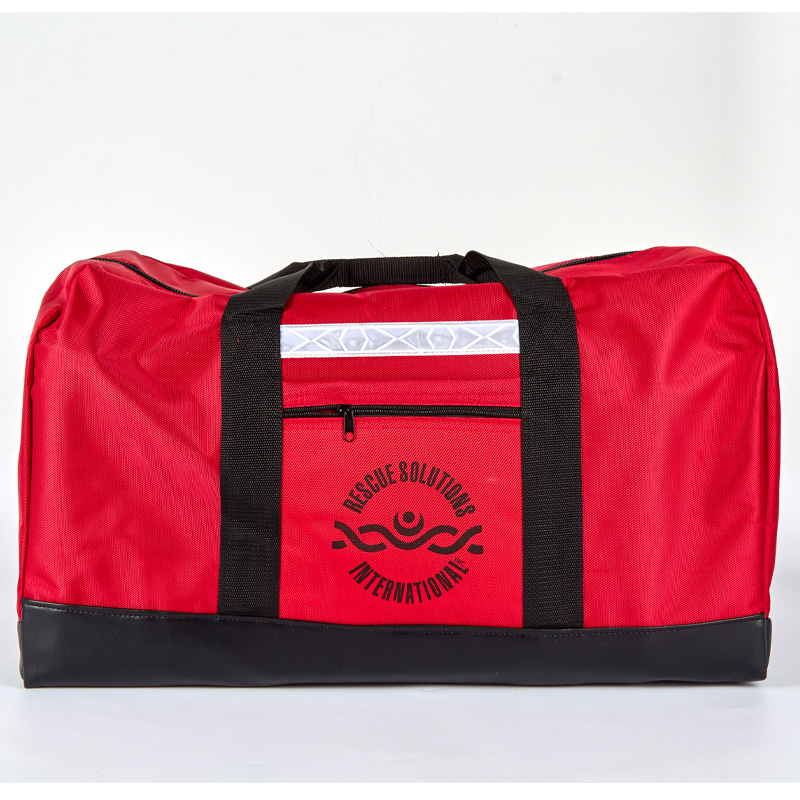

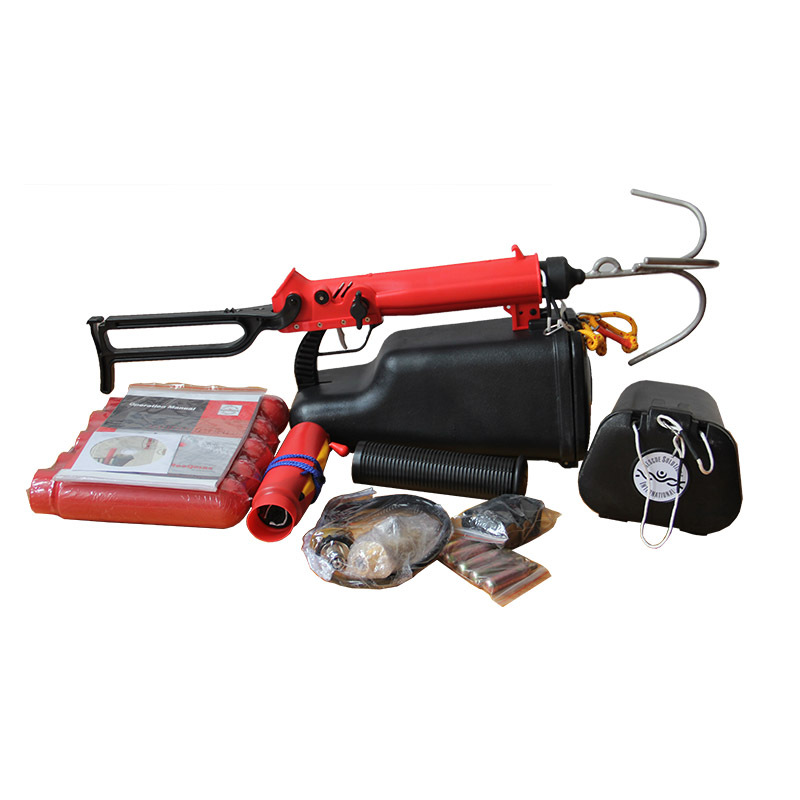

Configuration: 1 launcher, warhead (launch tube), 1 rope with a pulling force of 230 kg and 150 meters and a rope box, 1 rope with a pulling force of 1000 kg and 92 meters and a rope box, inflatable device, recoverable lifebuoy, 1 launch bottle with land protective cover, a carrying bag, a set of special tools, wearing parts, and rust inhibitor.
